3 - Zone - 36,000 BTU 20 SEER2 Daikin MXM Series Wall Mounted Ductless

Name: 3 - Zone - 36,000 BTU 20 SEER2 Daikin MXM Series Wall Mounted Ductless Mini Split Heat Pump Air Conditioner System 7K + 9K + 15K - 230V | R32 | Wi-Fi Enabled
Brand: Daikin
Price: 6614.0 USD
Availability: InStock

description
ACCESSORIES
You may also like

Accessories

Daikin 3-Zone MXM FTXV Series (4MXM36AVJU9 + CTXV07AVJU9 + FTXV09AVJU9 + FTXV15AVJU9)

Daikin has been a leading innovator and worldwide provider of advanced, high-quality air conditioning and heating solutions for residential and commercial applications for more than 90 years. The new Super Multi 4MXM multi-split system utilizes eco-friendly R-32 refrigerant, delivering higher energy efficiency and a lower global warming impact than conventional R-410A systems.

Homeowners often face challenges maintaining comfortable temperatures across different rooms, leading to energy waste in unused spaces. The 4MXM Series provides a solution, enabling independent temperature control in up to four separate zones with a single outdoor unit. With flexible indoor unit options - including wall-mounted, concealed slim-duct, ceiling cassette, and floor-mounted styles - Daikin’s Multi-Zone System meets a variety of residential and commercial comfort needs.The new 4MXM Series is designed and engineered to deliver years of consistent indoor comfort, assuring you premium Comfort for Life.

4MXM Energy Efficiency (Non-Ducted)
20 SEER2, 9.5 HSPF2, 10 EER2, and 1.8 COP.
Eco-Friendly Refrigerant:
Uses R-32 for higher efficiency and lower environmental impact.
12-Year Parts Warranty: Industry-leading coverage for lasting peace of mind.
Turbo Mode: Quickly cools or warms up rooms to the desired temperature.
Independent Control: Each unit operates independently, allowing tailored comfort in each zone.

DESIGN YOUR SYSTEM AS PER YOUR NEEDS

The Daikin MXM outdoor condenser is compatible with wall-mounted, concealed duct, floor-mounted, and ceiling cassette indoor-type units, allowing you to mix and match unit types to design a system that perfectly fits your needs at home or your business.

SMART COMFORT, WHEREVER YOU ARE

With built-in Wi-Fi, control your Daikin system remotely through the Daikin One Home app. Instantly adjust temperature, modes, and settings for personalized comfort, all from your smartphone or with voice commands via Alexa and Google Home.

LOW AMBIENT HEATING AND COOLING

The MXM Multi Split Heat Pump can provide heating or cooling in any environment. It will continue to operate optimally even in colder climates down to 5ºF for heating and up to 115ºF for cooling.

SMART INVERTER TECHNOLOGY

Daikin's Smart Inverter Technology ensures efficient and consistent room conditions with reduced energy consumption, eliminating temperature fluctuations for continuous comfort.

BUILT-IN ADVANCED FILTRATION SYSTEM

Featuring a Titanium Photocatalytic air purifying filter, this system traps microscopic particles, removes odors, and deactivates bacteria and viruses, ensuring clean, fresh air in every room.

QUIET OPERATION

Utilizing inverter technology to maintain comfort settings, the Daikin Multizone operates quietly with Indoor Sound Pressure as Low as 24 dB(A) and Outdoor Sound Pressure as Low as 56dB(A).

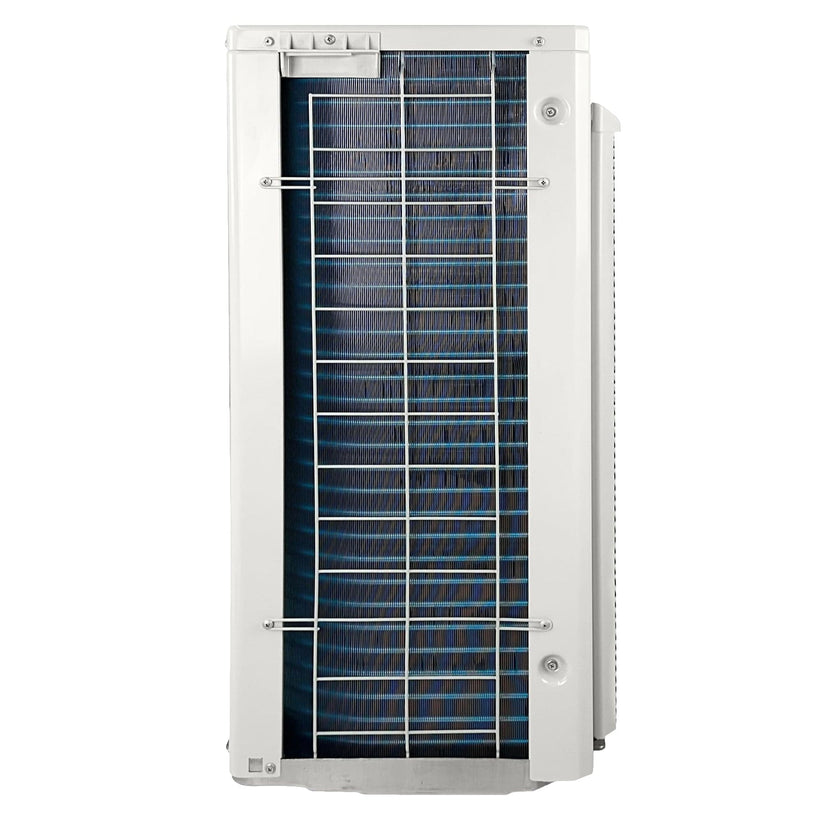

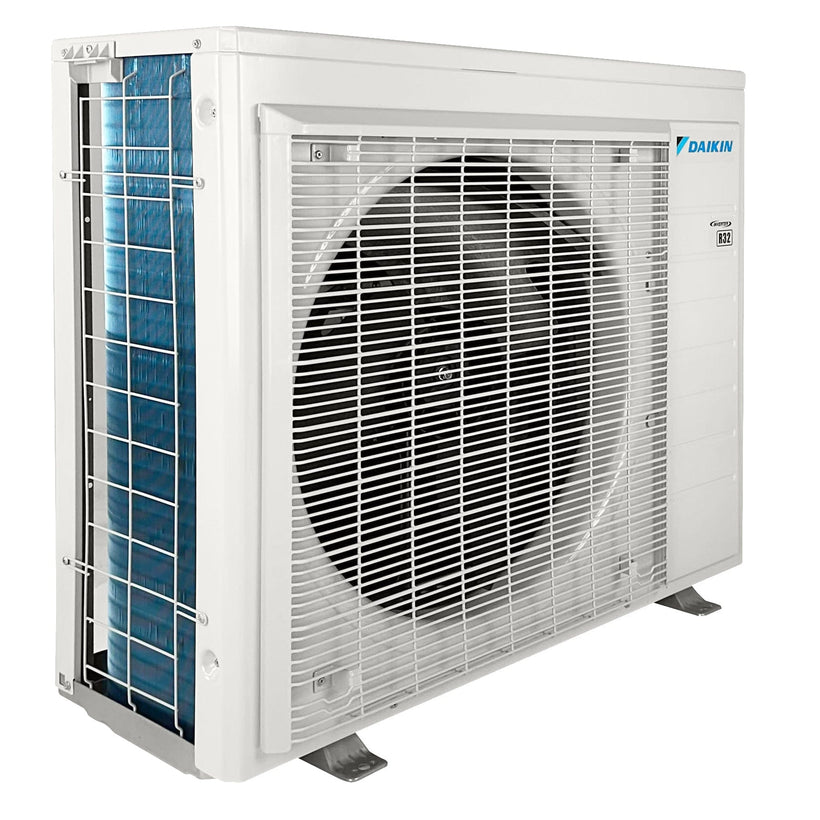

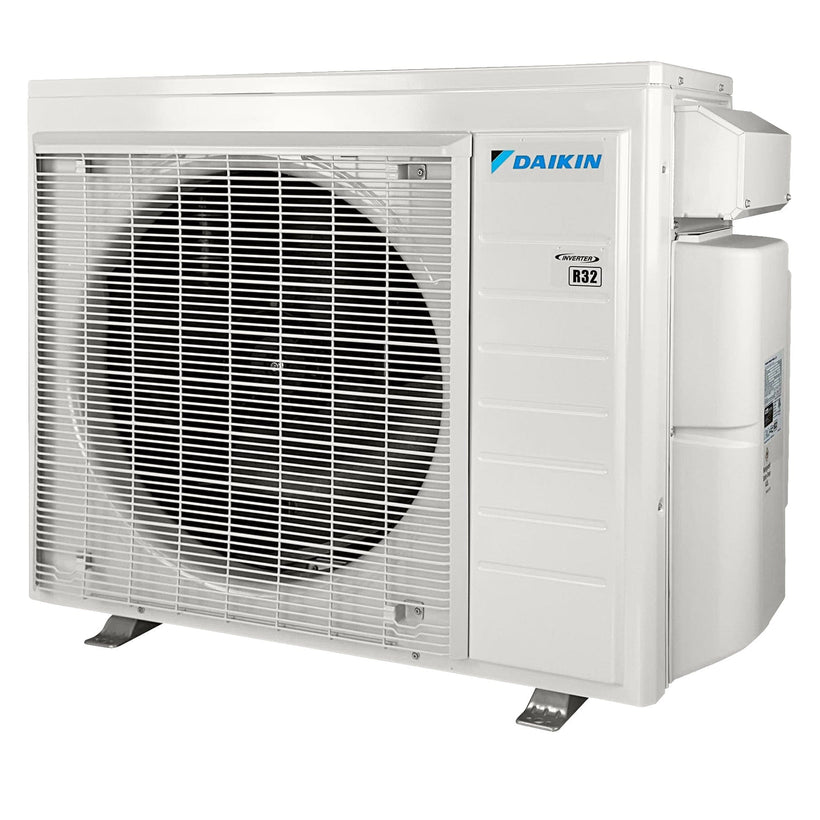

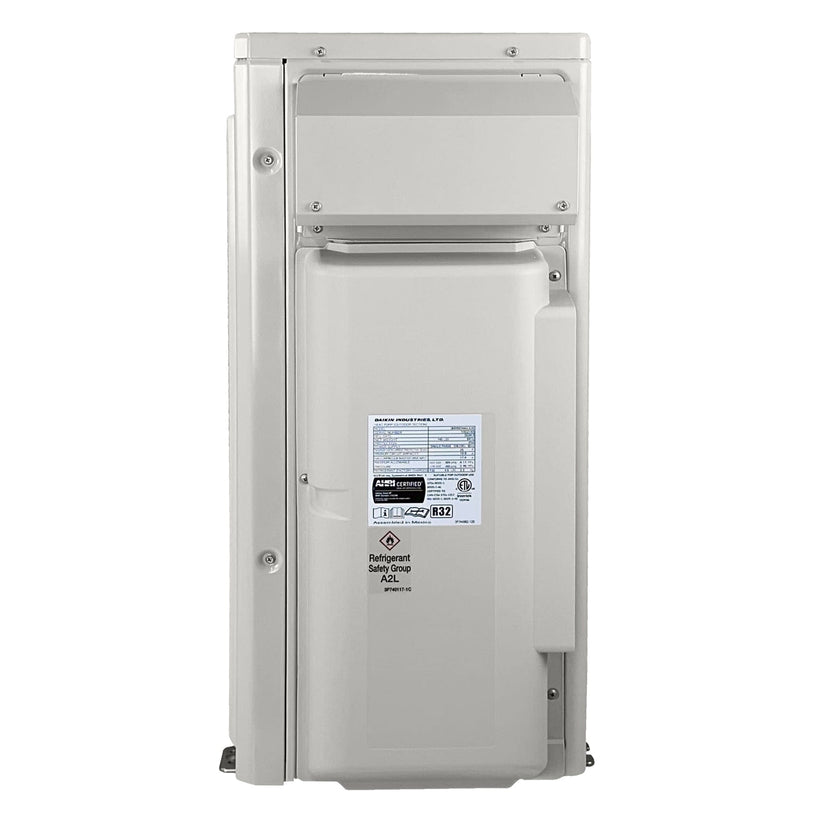

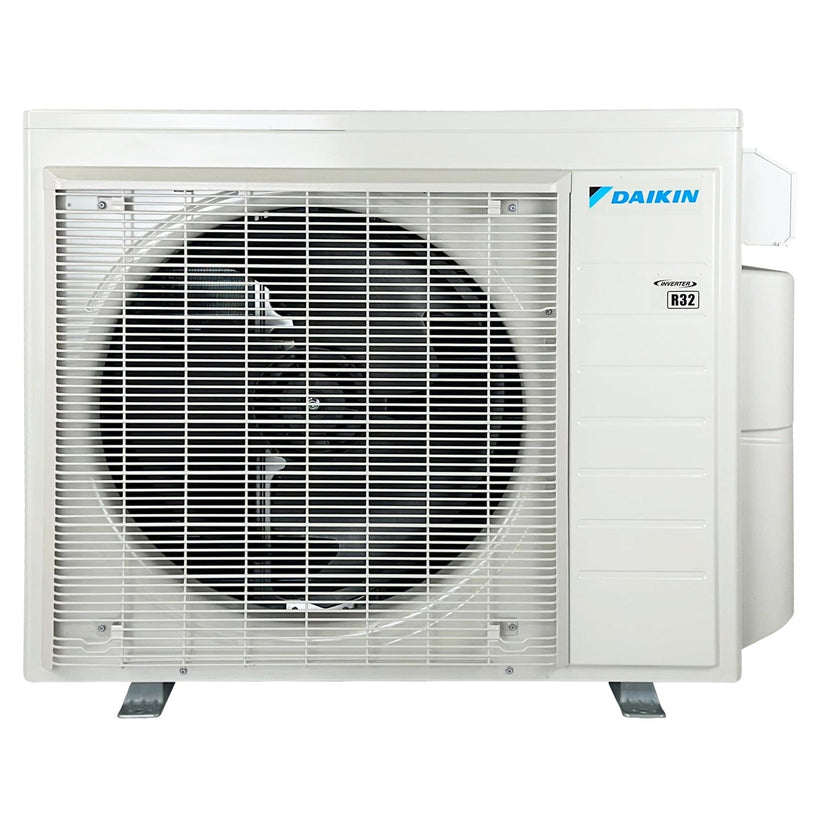

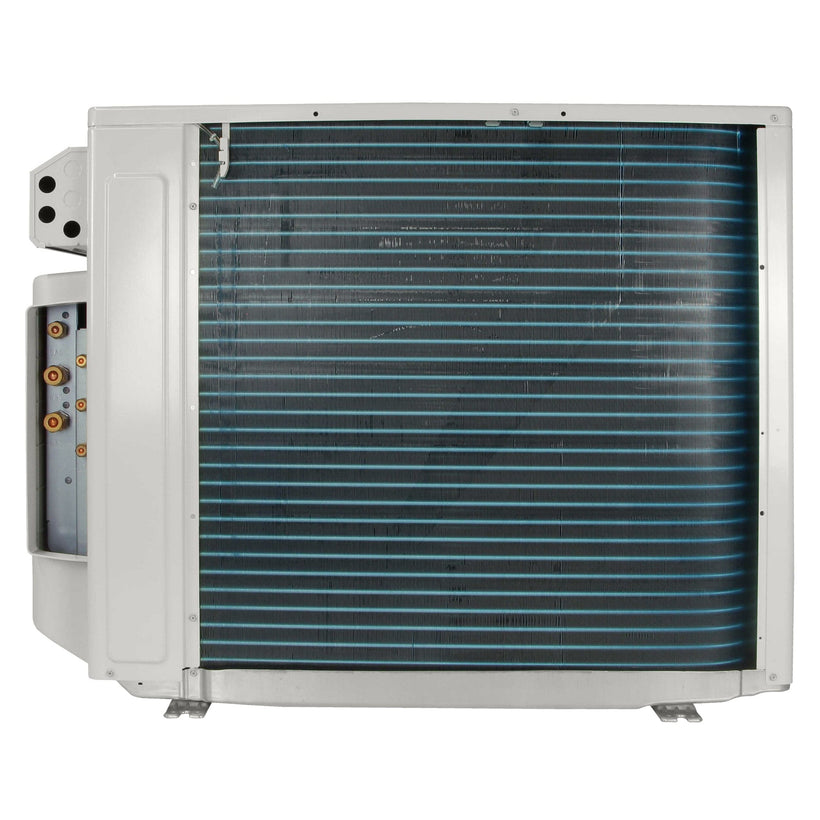

4MXM36AVJU9 - MXM OUTDOOR HEAT PUMP UNIT - 36,000 BTU

The new Daikin 4MXM36AVJU9 - 36,000 BTU SEER2 MXM Series condenser unit delivers powerful home comfort and energy efficiency in a space-saving design. Perfect for projects requiring versatility, this unit connects two, three, or four indoor units to a single outdoor unit, compatible with various Daikin indoor models. With advanced features like heat pump capabilities, anti-corrosion treatment for the outdoor heat exchanger, quiet operation, inverter power control for enhanced efficiency, and automatic defrosting, this condenser unit ensures exceptional heating and cooling performance while maintaining a serene environment. Backed by an industry-leading 12-year limited warranty, it’s designed for reliable, long-lasting comfort.

ADDITIONAL FEATURES

Heating Range 5°F - 59.9°F
Cooling Range 14°F - 115°F
Pre-charged up to 131 ft. of Liquid Line.
Auto Restart after Power Failure
Multi-Zone comfort: One outdoor unit connects up to four separate fan coils individually controlled.
Quick and easy installation
Precision temperature control for individual rooms
Space-saving design
Quiet operation
Fully optimized for R-32 refrigerant
World renowned Daikin Inverter "Variable-Speed" compressor technology

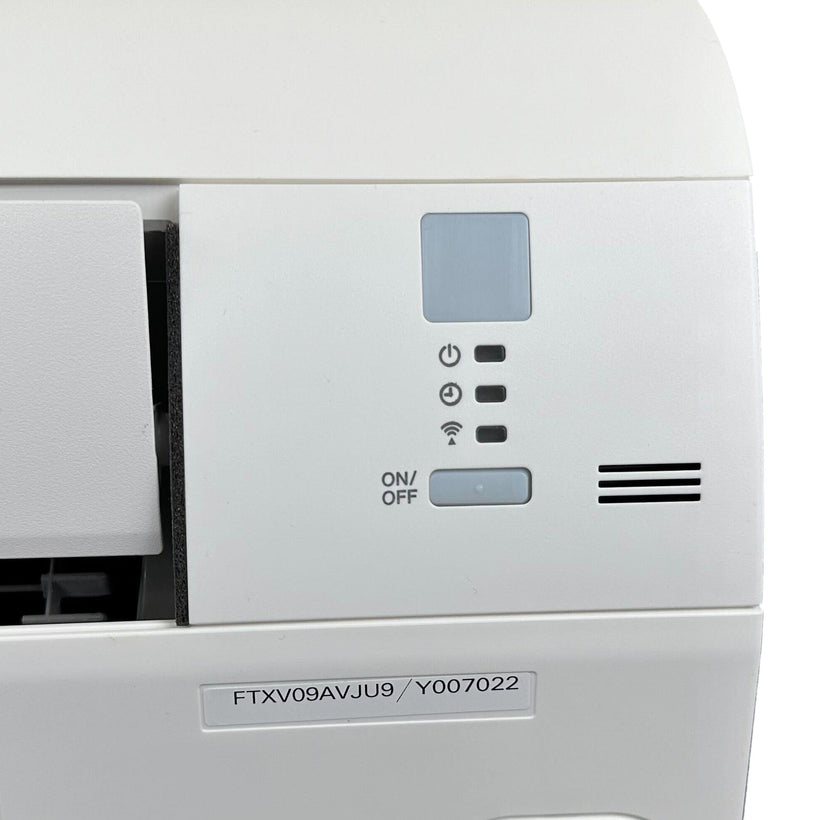

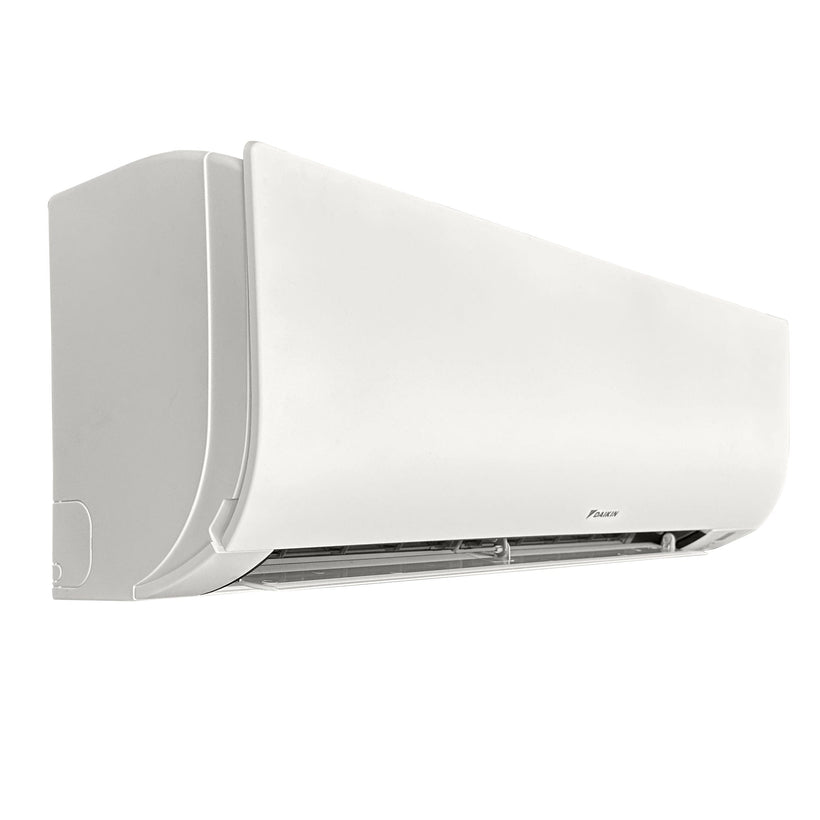

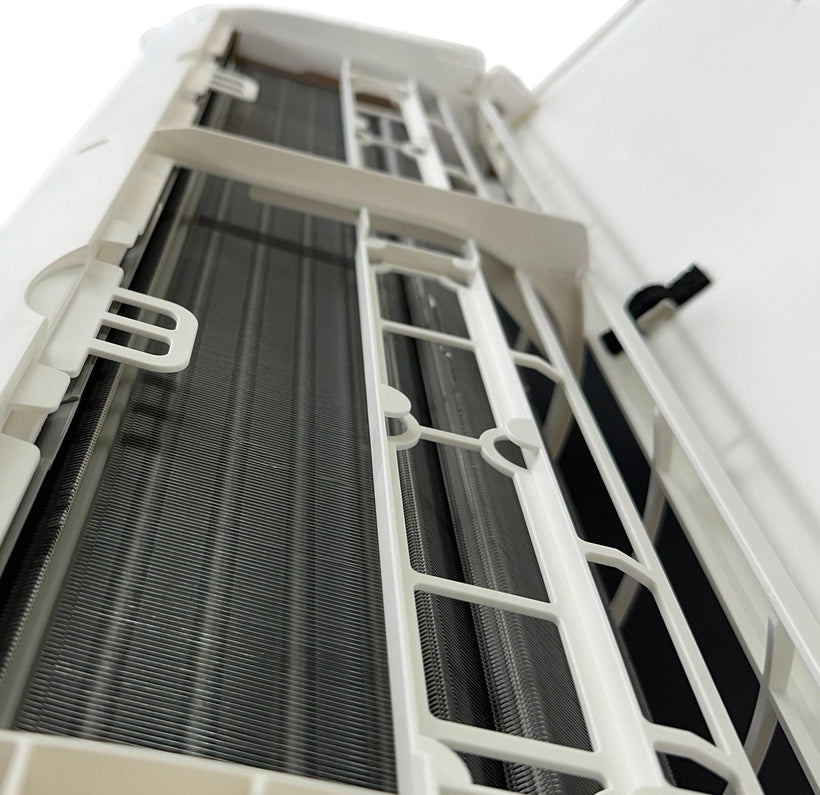

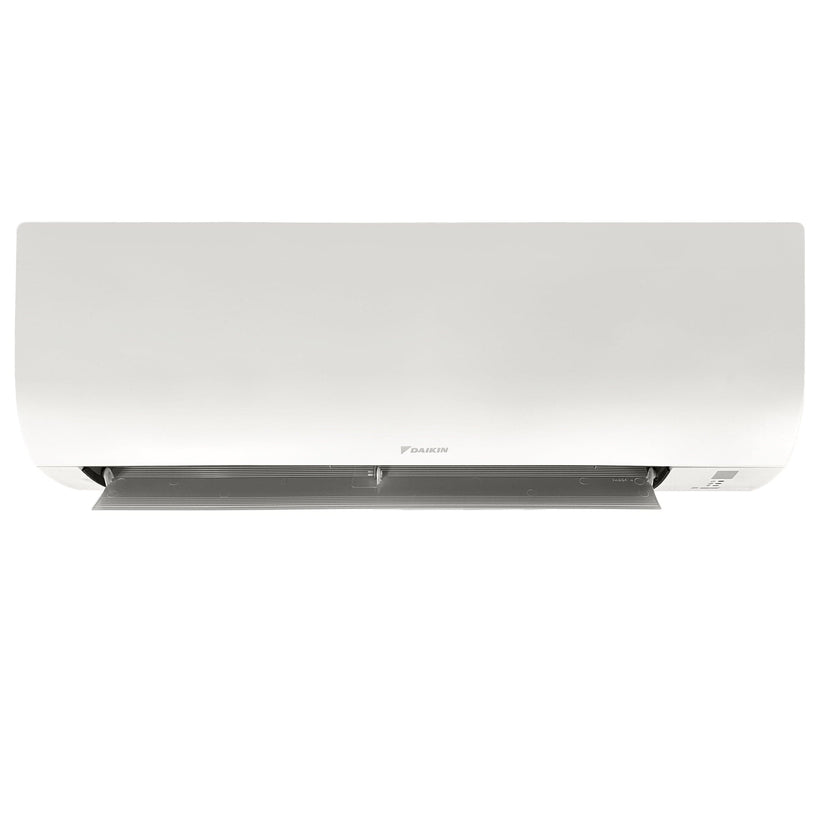

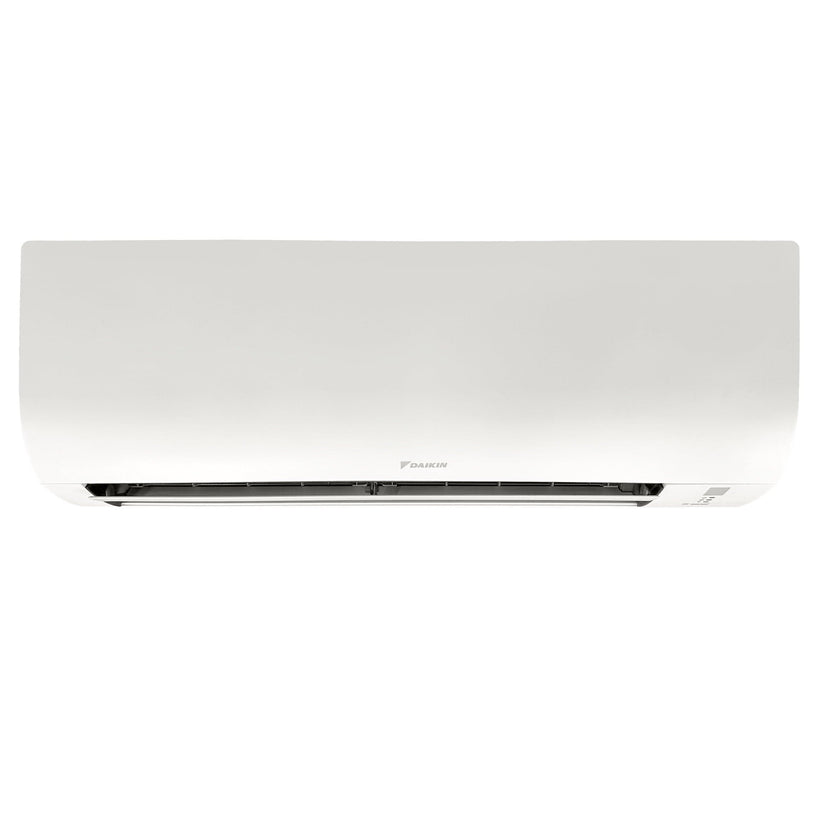

CTXV/FTXV | WALL MOUNT INDOOR UNIT

The Daikin CTXV/FTXV Multi-Zone Indoor Unit is a cutting-edge, wall-mounted system crafted to redefine your indoor comfort experience. With a sleek, stylish design that complements any decor, this unit includes a dry program to effectively reduce humidity without altering room temperature.
Operating as quietly as 24 dB(A), it also features built-in Wi-Fi for remote control, comfort air flow operation, and a Titanium Photocatalytic air purifying filter to ensure clean, fresh air. Additional features like the auto fan speed, program dry function, and ECONO Mode provide advanced control and energy savings, making this unit an effortless, stylish choice for modern comfort.

CTXV07AVJU9 FEATURES

Nominal Capacity 7,000 BTU
Wireless LAN connection
Indoor sound pressure as low as 24 dB(A)
Power-airflow flaps / Wide-angle louvers
Titanium Photocatalytic Air Purifying Filter
Auto-Swing
Program Dry Operation
Econo Mode
Powerful Operation Mode

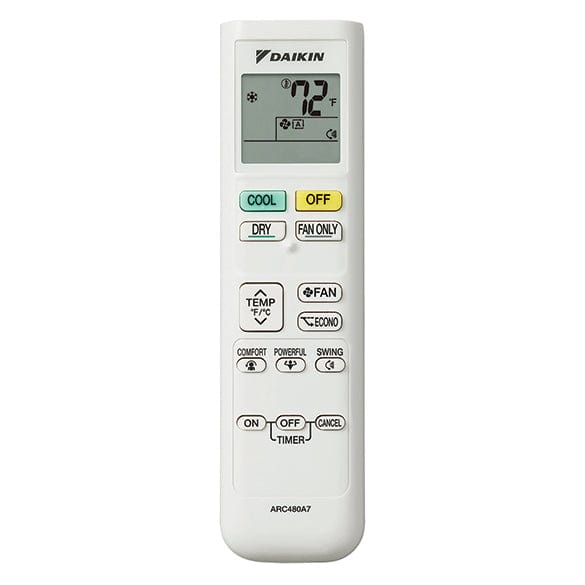

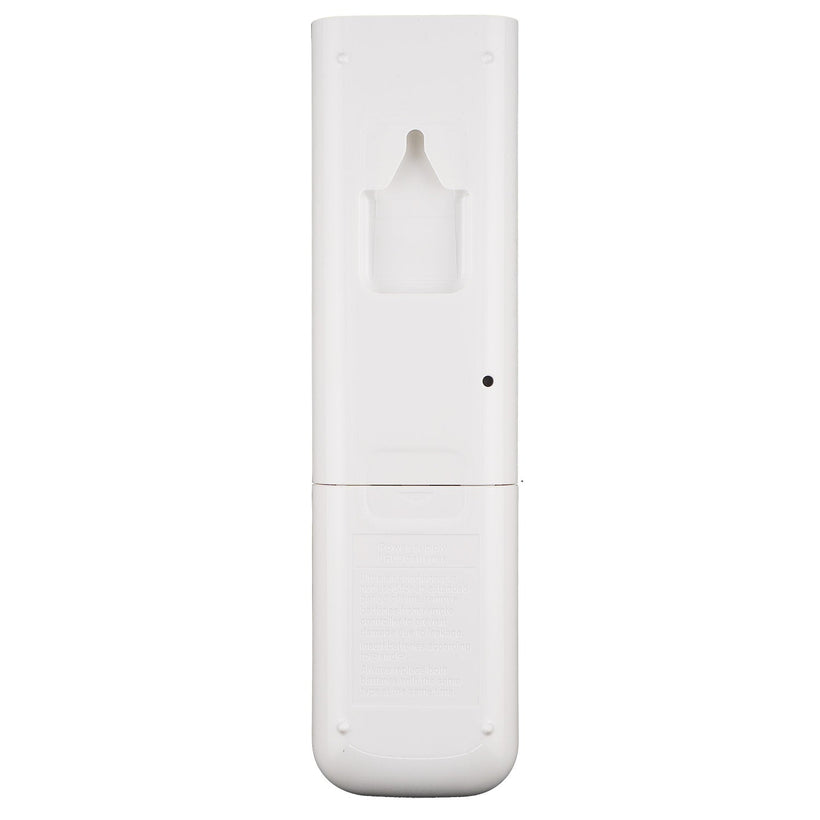

Backlit Wireless Remote Controller
Auto-Changeover

FTXV09AVJU9 FEATURES

Nominal Capacity 9,000 BTU
Wireless LAN connection
Indoor sound pressure as low as 24 dB(A)
Power-airflow flaps / Wide-angle louvers
Titanium Photocatalytic Air Purifying Filter
Auto-Swing
Program Dry Operation
Econo Mode
Powerful Operation Mode
Backlit Wireless Remote Controller
Auto-Changeover

FTXV15AVJU9 FEATURES

Nominal Capacity 15,000 BTU
Wireless LAN connection
Indoor sound pressure as low as 24 dB(A)
Power-airflow flaps / Wide-angle louvers
Titanium Photocatalytic Air Purifying Filter
Auto-Swing
Program Dry Operation
Econo Mode
Powerful Operation Mode
Backlit Wireless Remote Controller
Auto-Changeover

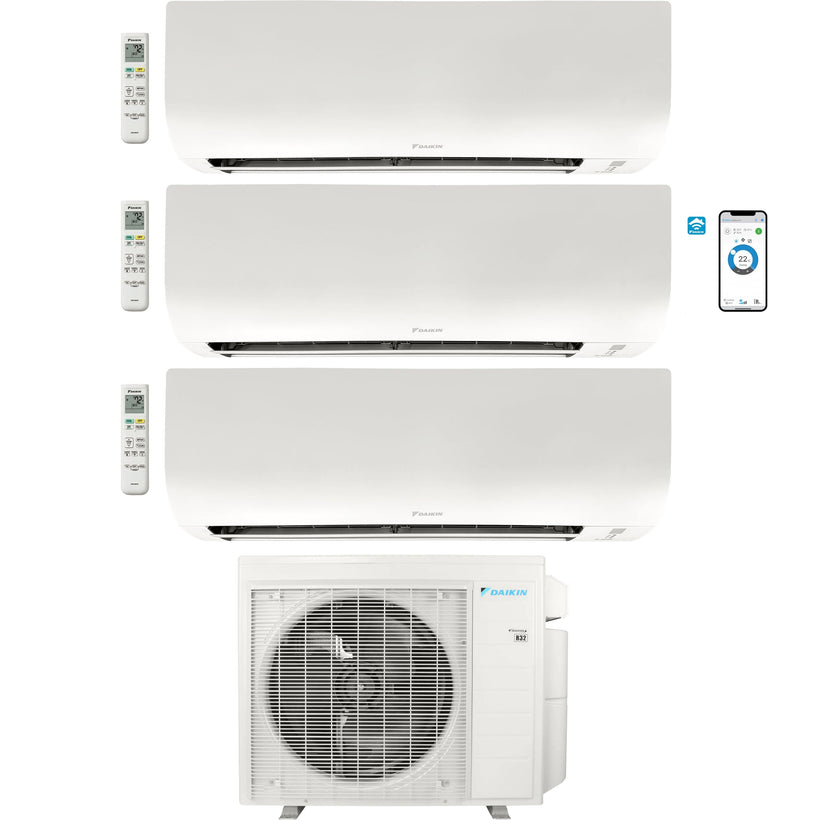

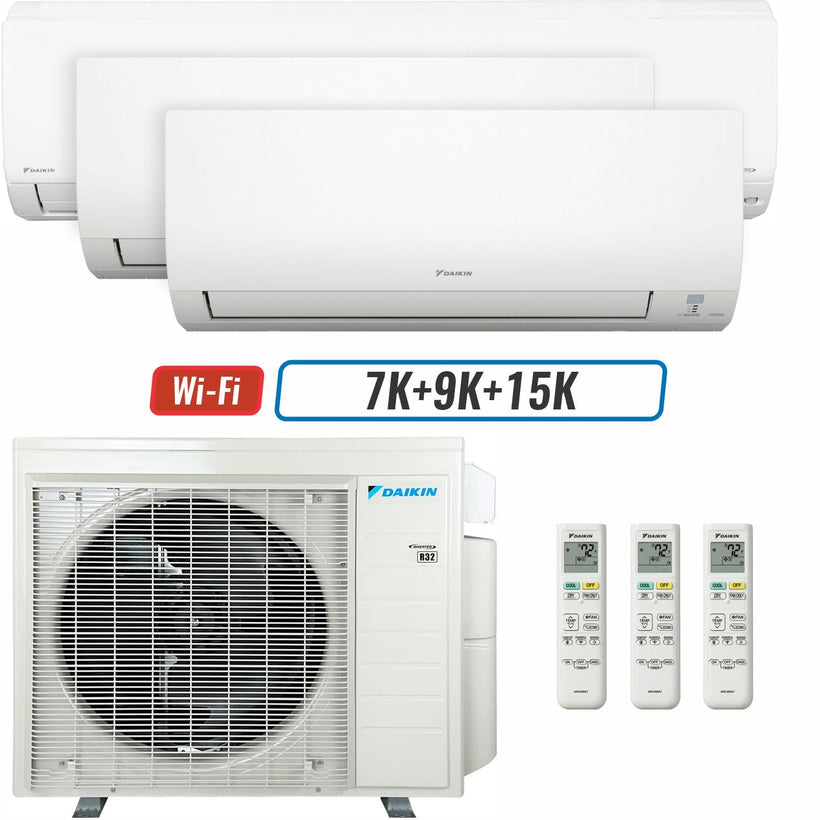

WHAT’S INCLUDED

Your Daikin ductless multi-zone inverter air conditioner heat pump system comes with:

4MXM36AVJU9 | Outdoor Unit
CTXV07AVJU9 | Indoor Unit
FTXV09AVJU9 | Indoor Unit
FTXV15AVJU9 | Indoor Unit
Manufacturer’s Warranty
User’s Manual
Installation Manual

Downloads

at a glance

Brand:
Daikin
Air Conditioner Type
Ductless Multi Split
Total Application Area (Sqft)
1450
Cooling Capacity (Btu)
36000
Heating Capacity (Btu)
36000
SEER2
20
HSPF2
9.5
EER2
12
Coeficient Of Performance (COP)
1.8
Power Supply
60 Hz, 208 - 230 V
Refrigerant Type
R32
Number of Zones (Rooms)
3
Manufacturer Limited Warranty (Yr)
12 Years
Wifi Capibility
Yes

Bundle includes 4 items

36,000 BTU Daikin MXM Multi Series Outdoor Multi-Split Heat Pump - R32

Model Number: 4MXM36AVJU9 SKU: DXM0746

7,000 BTU Daikin CTXV07AVJU9 Mini-Split Wall Mount Fan Coil Unit - R32

Model Number: CTXV07AVJU9 SKU: DIW0747

9,000 BTU Daikin FTXV09AVJU9 Mini-Split Wall Mount Fan Coil Unit - R32

Model Number: FTXV09AVJU9 SKU: DIW0748

15,000 BTU Daikin FTXV15AVJU9 Mini-Split Wall Mount Fan Coil Unit - R32

Model Number: FTXV15AVJU9 SKU: DIW0750

System Specifications

Air Conditioner Type	Ductless Multi Split
Total Application Area (Sqft)	1450
Cooling Capacity (Btu)	36000
Heating Capacity (Btu)	36000
SEER2	20
HSPF2	9.5
EER2	12
Coeficient Of Performance (COP)	1.8
Power Supply	60 Hz, 208 - 230 V
Refrigerant Type	R32
Number of Zones (Rooms)	3
Manufacturer Limited Warranty (Yr)	12 Years
Wifi Capibility	Yes

Specifications for model: FTXV15AVJU9

Mounting Style	Wall Mounted
Airflow Rate (Hi/Mi/Lo)	540 / 470 / 381 / 339
Sound Level (Hi/Mi/Lo) dB(A)	45 / 41 / 37 / 33
Liquid Line Size (In)	1/4
Suction Line Size (In)	1/2
Drain Line Size (In)	5/8
Application Area (Sqft)	750
Indoor Air Quality Type	Washable Air Filter
Net/Gross weight (Lb)	19/24
Width / Depth / Height (In)	11-5/8 × 39 × 10-3/8
Packaged Width / Depth / Height (In)	15-3/16 × 43-3/8 × 15-5/16

Specifications for model: 4MXM36AVJU9

Outdoor Model Number	4MXM36AVJU9
Nominal Cooling Capacity (BTU)	36,000
Nominal Heating Capacity (BTU)	36,000
Outdoor unit noise Level (DB)	60
Liquid Line Size	1/4
Suction Line Size	5/8
Operation Mode	Heat Pump
Compressor Type	Hermetically Sealed Swing
Width / Depth / Height	29-1/2 × 34-1/4 × 12-5/8 (750 × 870 × 320)
Maximum Indoor Units	4

Specifications for model: CTXV07AVJU9

Mounting Style	Wall Mounted
Airflow Rate (Hi/Mi/Lo)	332 / 268 / 230 / 166
Sound Level (Hi/Mi/Lo) dB(A)	40 / 35 / 31 / 24
Liquid Line Size (In)	1/4
Suction Line Size (In)	3/8
Drain Line Size (In)	5/8
Application Area (Sqft)	300
Indoor Air Quality Type	Washable Air Filter
Net/Gross weight (Lb)	19/24
Width / Depth / Height (In)	11-1/4 × 30-5/16 × 8-3/4
Packaged Width / Depth / Height (In)	12-5/8 × 32-11/16 × 14-3/16

Specifications for model: FTXV09AVJU9

Mounting Style	Wall Mounted
Airflow Rate (Hi/Mi/Lo)	381 / 272 / 230 / 166
Sound Level (Hi/Mi/Lo) dB(A)	40 / 35 / 31 / 24
Liquid Line Size (In)	1/4
Suction Line Size (In)	3/8
Drain Line Size (In)	5/8
Application Area (Sqft)	400
Indoor Air Quality Type	Washable Air Filter
Net/Gross weight (Lb)	19/24
Width / Depth / Height (In)	11-1/4 × 30-5/16 × 8-3/4
Packaged Width / Depth / Height (In)	12-5/8 × 32-11/16 × 14-3/16
