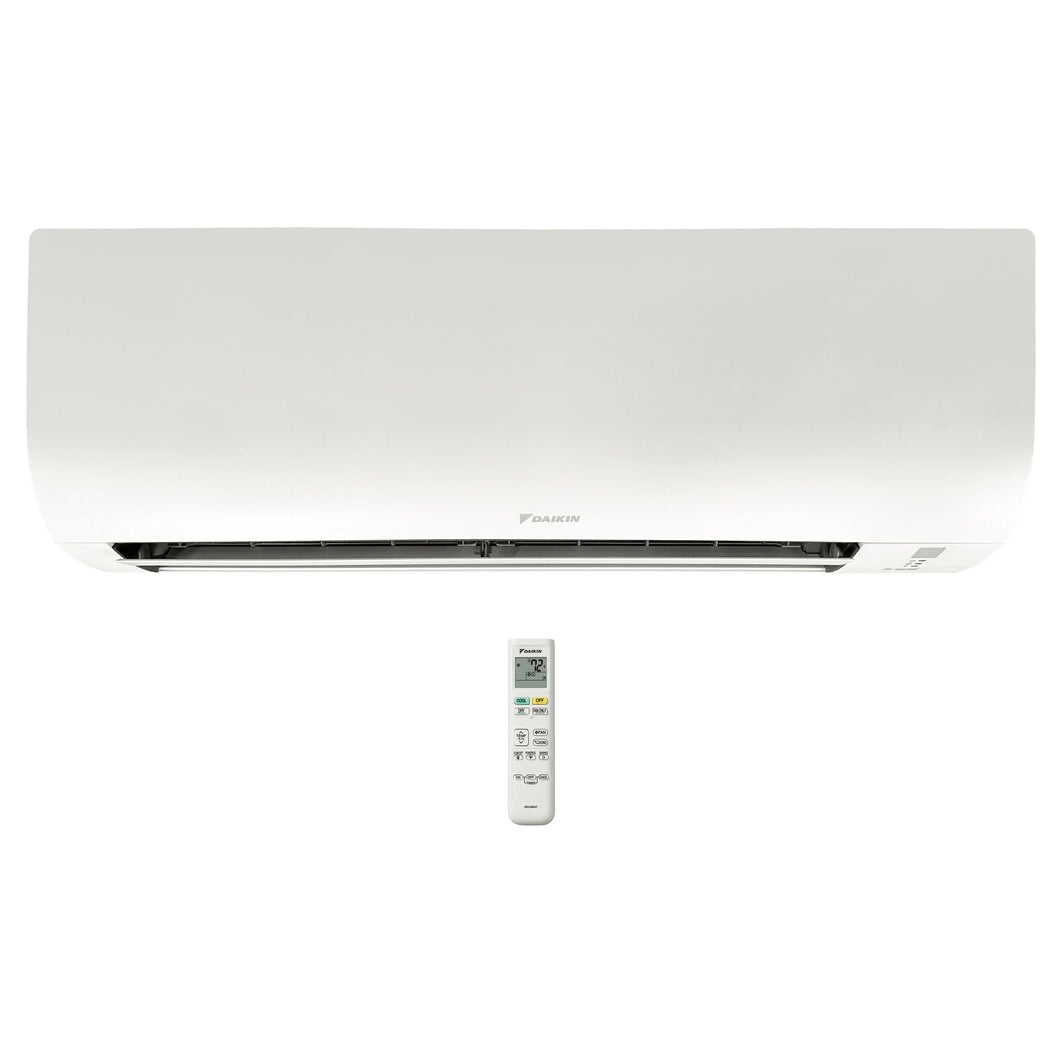

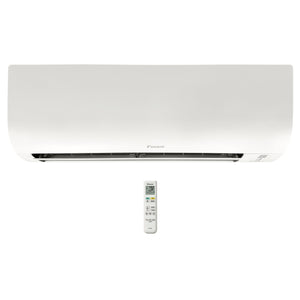

Daikin AURORA R-32 1.0-Ton Wall Mounted Unit SINGLE ZONE INVERTER HEAT PUMP
Discreet wall-mounted unit providing high efficiency and comfort.
The smooth panel of the AURORA indoor unit allows it to blend in with any decor. Whether your rooms are large or
small, Daikin has units with the capacities to provide the climate you want and which suit your budget.
Indoor unit features
- Program Dry allows humidity levels to be reduced.
Titanium Apatite Photocatalytic Air Purifying Filter – This filter combines the air-purifying filter and titanium apatite photocatalytic deodorizing filter in a single highly effective unit. - Hot Start – Reduces cold drafts when the heating operation starts or when the unit changes from cooling to heating.
- Comfort Airflow Mode adjusts the direction and airflow rate so that the air from the unit does not blow directly on the occupants of the room.
- Pushing the POWERFUL button on the remote control gives you a boost in cooling or heating power for a 20-minute period, even if the unit is already operating at high capacity.
SPECIFICATIONS
- Indoor Unit Model No. FTXV12AVJU9
- Indoor Unit Name: 1 Ton Wall Mount R-32
- Rated Cooling Capacity (Btu/hr): 10,600
- Rated Cooling Conditions Indoor (°F DB/WB): 80 / 67
- Max/Min Cooling Capacity (Btu/hr): 14,600 / 4,400
- Rated Heating Capacity (Btu/hr): 13,500
- Rated Heating Conditions Indoor (°F DB/WB): 70 / 60
- Max/Min Heating Capacity (Btu/hr): 18,800 / 4,400
- Rated Piping Length(ft): 25
- SEER2: 20.00
- HSPF2: 10.2
- EER2: 12.00
- Refrigerant Type: R-32
- Cooling Operation Range (°F DB): 50 - 115
- Heating Operation Range (°F WB): -13 - 60
- Cooling Range w/Baffle (°F DB): -4
- Max. Pipe Length (Vertical) (ft): 49
- Airflow Rate (H/M/L/SL) (CFM): 392/293/226/166
- Liquid Line Size (in): 1/4"
- Gas Line Size (in): 3/8"
- Drain Line Size (in): 5/8
- Sound Pressure (H/M/L/SL) (dBA): 45/37/31/24
- Dimensions (HxWxD) (in): 11-1/4 x 30-5/16 x 8-3/4
- Net Weight (lb): 19
Designed for living: Solutions for hot and cold climates
Living in colder climates doesn’t mean a heat pump isn’t a viable option to heat each space in your home or business, nor does living in warmer climates preclude the use of a heat pump as a viable option for cooling. The outdoor units of this Multi-Zone Daikin AURORA heat pump system have been redesigned to withstand extreme weather conditions, even when it is down to -13°F WB (-25°C WB) or up to 115°F DB (46°C DB) for year round comfort.
Premium comfort features
- Energy Efficient – Up to 21 SEER2 / 10.2 HSPF2 / 12 EER2 for ultra-efficient cooling and heating operation and reduced operating costs compared to conventional lower-efficiency systems.
- Advanced Filtration – Long life, washable filters.
- Enhanced Capacity – Up to 100% rated cooling capacity at 104°F DB (40°C DB).
- Up to 90% rated cooling capacity at 115°F DB (46°C DB).
- Up to 100% rated heating capacity at 5°F WB and confirmed continuous operation as low -13°F WB ambient temperature.
Ideal solution for
- Primary living areas (master bedrooms and living rooms)
- Hot or cold rooms
- Rooms with poor air flow
- Renovations and remodeling
- Basements, attics and garages
- New construction
at a glance
-
Brand:
Daikin -
Model Number
FTXV12AVJU9
System Specifications
| Mounting Style | Wall Mounted |
|---|---|
| Airflow Rate (Hi/Mi/Lo) | 392 / 293 / 226 / 166 |
| Sound Level (Hi/Mi/Lo) dB(A) | 45 / 37 / 31 / 24 |
| Liquid Line Size (In) | 1/4 |
| Suction Line Size (In) | 3/8 |
| Drain Line Size (In) | 5/8 |
| Application Area (Sqft) | 550 |
| Indoor Air Quality Type | Washable Air Filter |
| Net/Gross weight (Lb) | 19/24 |
| Width / Depth / Height (In) | 11-1/4 × 30-5/16 × 8-3/4 |
| Packaged Width / Depth / Height (In) | 12-5/8 × 32-11/16 × 14-3/16 |
